Manure dryer is also called organic fertilizer dryer, chicken manure dryer, pig manure dryer, cow manure dryer, pasture dryer, rotary drum dryer and so on by different names. The finished product of organic fertilizer dryer has fine particles and the dried product can be used as a medium for growing edible mushrooms double spore mushrooms or sold as feed for breeding turtles, fish, snails, chickens, ducks and so on.

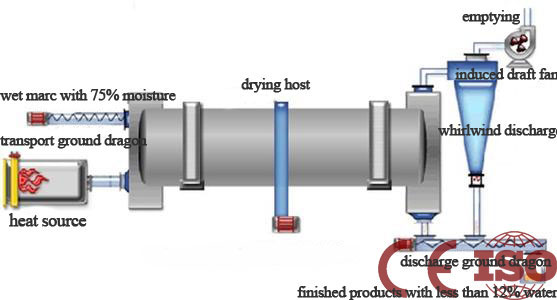

The complete set of the drying equipment mainly is composed of the crushing drum dryer, feed spiral, output spiral, pipeline,burning furnace,  dust collector, airlock, air induced fan, electric control cabinet and other components.Humidity materials are conveyed from the feed screw directly into the dryer drum, raised by the drum wall panels repeatedly, and scattered by the crushing blow dispersion devices. Materials and the negative high-temp media are combined sufficiently to complete heat and mass transfer process.

As the result of the drum wind angle and the induced air, the feed materials move slowly, and discharged from the spiral after drying, the exhaust gas handled by the dust precipitator, venting to the atmosphere.

Technological process of Manure Dryer:

Mixing - feeding - drying - cooling - bagging

The detailed process: optional materials -> drying and sterilization -> ingredients -> granulating -> cooling and screening -> measuring and sealing -> finishing warehousing

1, Large capacity. A single set of equipment can process 80-500 tons of various organic fertilizers per day

2, Wide applications. Besides being used for all kinds of chicken manure, cow manure, sheep manure, pig manure and other poultry manure, it can also be used for drying rapeseed residue, cinder, wood chips, etc.

3, Simple structure, low cost. Using the rotary dryer as the main machine of the drying system, it has a simple structure, few faults, low maintenance costs, large production capacity and can operate continuously for a long time.
