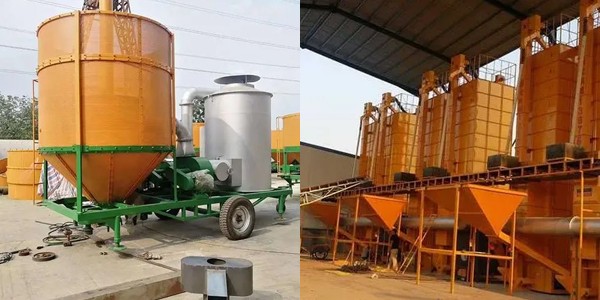

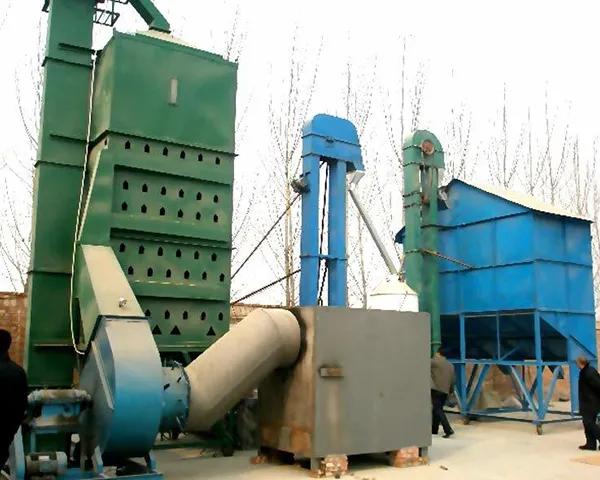

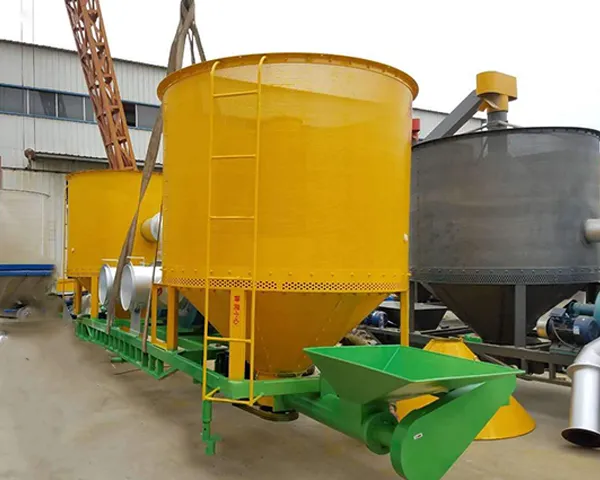

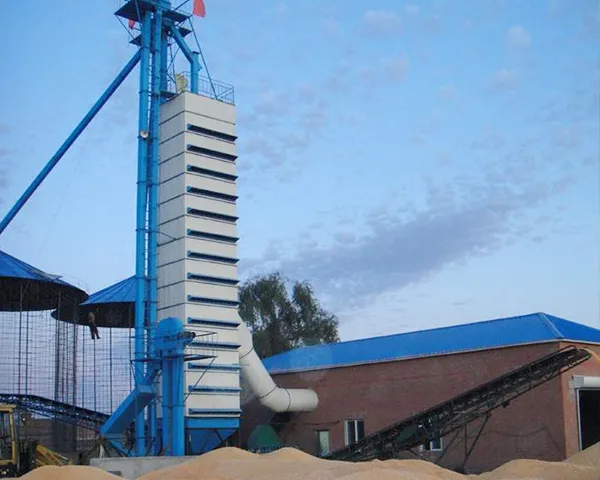

Mobile type grain dryer is series products, have single tower, double tower, three tower, multi-tower combine type. This machine main used for grain enterprise, planting and business specialist heavy moisture grain safety storage, developed and designed for grain(maize, rice, wheat, corn, etc.), oil material, seed, forage seeds and other crops provide drying the whole equipment. Matched heating resources: coal furnace, rice husk furnace(can burn straw, rice husk, wood, bamboo dust, etc), Nano far infrared, heat conduct, steam, oil, gas, coal gas furnace. The machine main used for paddy, corn, wheat, soybean, rapeseed, seed grain, forage seeds and other granule material heating process.

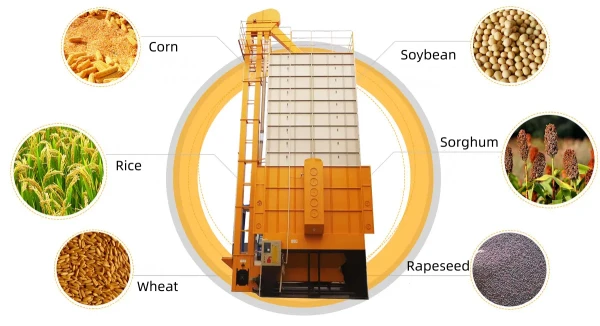

Application of materials:

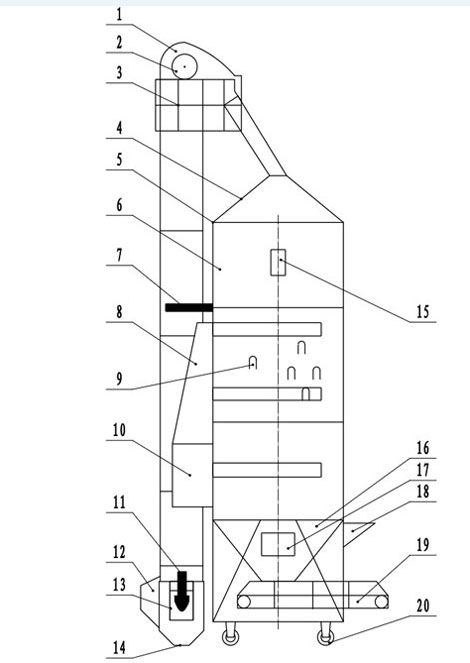

1：Elevator 2：Elevator main drive 3：Guard Bar 4：Manhole 5：Lifting Hook

6：TowerBody 7：Elevator Fixed Bottom 8：Hot-Blast Air Pipe 9：Exhaust Duct

10：Hot-blast Main Pipe 11：Elevator with tension governor 12：Grain Feed Hopper

13：Cycle Feed Hopper 14：Clean Bottom plate 15：Observe Hole

16：Row grain below storage hooper 17：Bottom observe hole

18：Uniform distrbution row grain machanism 19：Cycle conveyor 20：Mobile ground wheel

The whole equipment combined by drying tower, cooling tower, hot stove, blower, elevator, cycle conveyor, electric control device and other equipment. Structure combination: elevating structure, cycle structure, drying system, cooling system, uniform discharging grain structure, heating system, operation control system, etc.

The machine features:

1.Can mobile working, convenient for installation and using;

2.Multi-section drying, automatic cycle back flow, decrease cooling speed, can realize cereals moisture decrease substantially, high moisture grain once feeding can decreased to safety moisture;

3.Uniform discharge grain, without dead ends, cereals with uniform drying;

4.Three-section continuous drying, many airflow pipeline, big airflow capacity, low temperature back flow and low speed, cycle drying to remove the moisture, indirect contact air, effectively make sure cereals quality.
